Hirayama HVE50 Upright Autoclave (50 Liter)

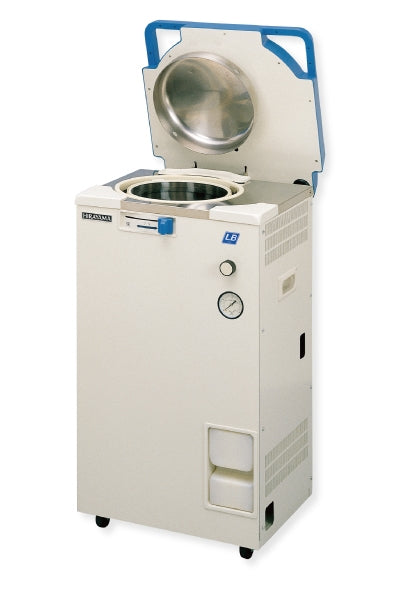

Space-saving design with lid opening upward.
Agar sterilization mode for sterilizing agar and then automatically maintaining it at liquid temperature.
Dual-sensing lid interlock prevents lid opening when chamber is pressurized or when temperature exceeds 97°C.
Agar melting mode for melting agar and maintaining it at liquid temperature, or for a hot, faster start-up.
One-touch lever to easily open and close chamber lid.
In-process display shows the status and the progress of sterilization cycle.
Door-closure sensor provides a prompt and the cycle will not start unless the door is closed properly.
HVE-50 size: 50 liters, 11.8" D, 28.0"H.
Specifications
| TEMPERATURE | |
| Operating Range |
105ºC to 135ºC
|
| Display Range |
5ºC to 137ºC
|
| Warming Range |
45ºC to 60ºC
|
| GAUGE PRESSURE | |
| Operating Range (gauge) |
3 to 30 psi (0.021 to 0.206MPa)
|
| Maximum Allowable |
38 psi ( 0.26MPa)
|
| TIMER | |
| Sterilization |
1 to 250 minutes
|
| DIMENSIONS | |
| Overall (W x D x H) |

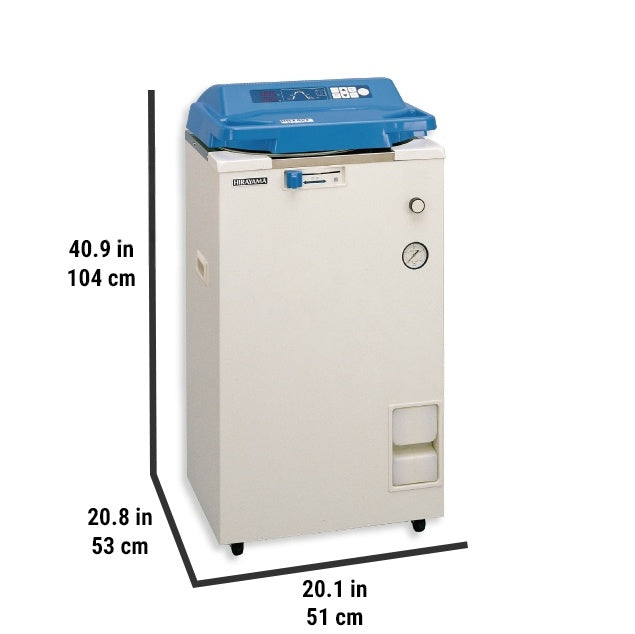

20.1" x 20.8" x 40.9" (51 cm x 53 cm x 104 cm)
|
| Chamber (Diameter x Height) |
50 liters
11.8" x 28" (30 cm x 71 cm) |
| SAFETY DEVICES |
Dual-sensing lid interlock, over-pressure power cutoff, over-temperature power cutoff, low-water power cutoff, mechanical pressure relief valve, lid-closure detector, over-current detector and circuit breaker
|
| PROGRAMS | |
| 1. For agar/liquids. Also for melting agar, or for faster start-up |
Heating -> Sterilization -> Auto steam exhaust or ambient cooling (programmable) -> Warming -> Completion
|
| 2. For liquids/solids |
Heating -> Sterilization -> Auto steam exhaust or ambient cooling (programmable) -> Completion
|
| 3. For solids |
Heating -> Sterilization -> Auto exhaust (fast) -> Completion
|
| ACCESSORIES | |
| Stainless steel |
Mesh wire baskets, buckets (pails), and round test tube racks
|
| Factory or field installed |
Data logger
|
| POWER | |
| Source |
120V, 50/60 Hz, single phase (220V available on request)
|
| Consumption |
2000 watts (2000 VA)
|
| SHIPPING WEIGHT |
180 lb (82 kg)
|
WARRANTY: Autoclaves are protected by a 12-month warranty.
